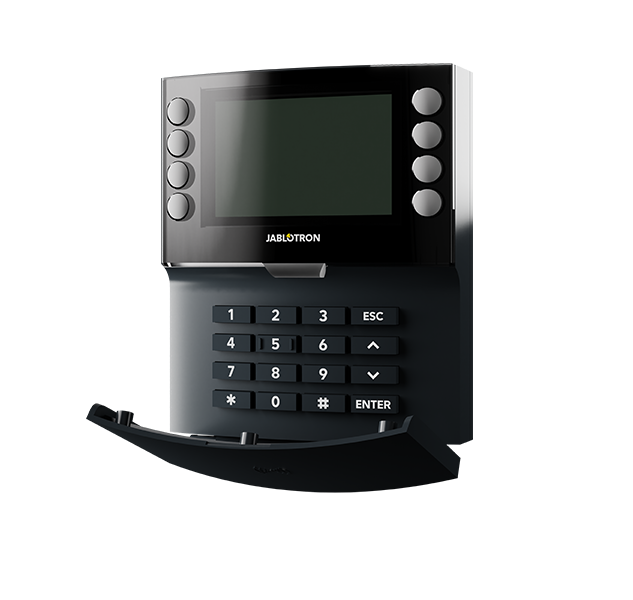

Name: Bus-connected four-segment keypad with display and NFC reader - anthracite
SKU: JA-115E-NFC-AN
Price: *** EUR
Availability: InStock

JABLOTRON main website

MyCOMPANY APPLICATION

Contacts for distribution partners

Product Compatibility

GDPR

Data act

In stock

The keypad combines a clear display with segment-based controls that utilise a unique traffic light logic for immediate indication of the system status.
<ul>
<li>Traffic light control: Four fixed segments allow for simple control of the most common functions, such as zone monitoring or PG output control, with clear colour status indication.</li>
<li>Innovative MIFARE authorisation: Instead of the previous 125 kHz standard, the keypad supports modern and secure 13.56 MHz NFC MIFARE chips with advanced encryption.</li>
<li>Comprehensive system management: The full range of system functions can be controlled via the internal menu, including viewing the event history, managing users or blocking individual peripherals.</li>
<li>Power supply and communication: The module is powered directly from the system bus, which ensures stable operation and a constant response from the optical indicator and chip reader.</li>
<li>Simplified installation: The screwless terminal block used facilitates cable connection and speeds up mounting directly onto the substrate or onto an installation box.</li>
<li>Surface mounting: For installations with surface-mounted cabling (in a trunking or conduit), the optional <a href="https://portal.jablotron.com/p/JA-105PL" target="_blank">JA-105PL</a> mounting plate must be used.</li>
<li>System compatibility: The product is fully compatible with control panels of the <a href="https://portal.jablotron.com/p/JA-102KY" target="_blank">JA-102K</a>, <a href="https://portal.jablotron.com/p/JA-103K" target="_blank">JA-103K</a> and <a href="https://portal.jablotron.com/p/JA-107K" target="_blank">JA-107K</a> series.</li>
</ul>

Bus-connected four-segment keypad with display and NFC reader - anthracite

Colour

Product type

System

The JA-115E-NFC-AN represents the basic user interface in the JABLOTRON 100+ and Mercury portfolios, designed for users who require maximum functionality and intuitive operation. The robust four-segment design significantly simplifies installation and ensures a visually sleek finish without the need for complex assembly of individual segments.
