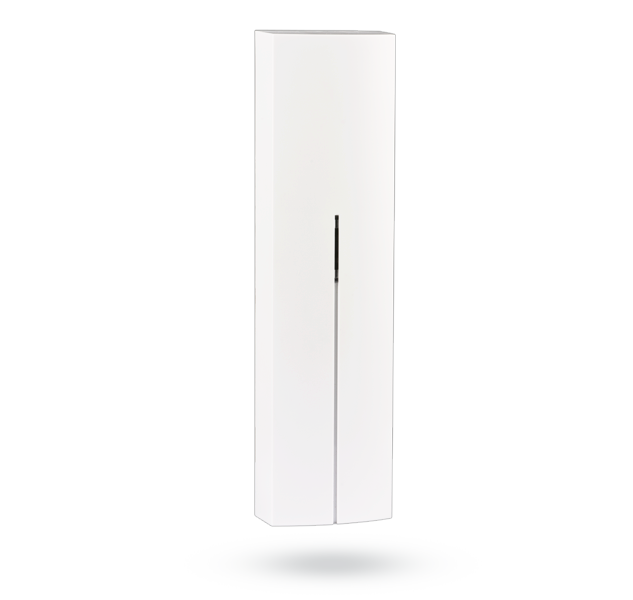

Name: Bus interface for JA-80 one-way wireless devices
SKU: JA-110R 80
Price: *** EUR
Availability: OutOfStock

JA-100K

JA-101K

JA-102K

GSM Control panel with LAN communicator

JA-106K

Control panel with LAN communicator

JABLOTRON Mercury Alarm system control panel with radio module and 4G communicator LITE

Bus interface for JA-80 one-way wireless devices

JABLOTRON main website

MyCOMPANY APPLICATION

Contacts for distribution partners

Product Compatibility

GDPR

Data act

Out of stock

<p>It supports the modernization of a wireless Oasis system to a JABLOTRON 100 system with some of the original devices (e.g. detectors) kept.</p>
<p>The JA-110R 80 radio module can be combined in the system with JA-11xR modules that communicate with JABLOTRON 100 components (e.g. keypads, sirens, camera PIR detectors etc.).</p>
<p><span style="text-decoration: underline;">Devices supported by the JA-110R 80 module:</span><br /> JA-8x detectors <br /> RC-8x remote controls</p>
<p><span style="text-decoration: underline;">Non-supported devices:</span><br /> JA-8xF keypads <br /> JA-84P camera PIR detectors <br /> JA-80Z repeater <br /> JA-80x sirens <br /> TP-xx thermostats <br /> AC-8x and UC-82 output modules <br /> JA-8xK control panels</p>
<h3>Specifications</h3>
<table>
<tbody>
<tr><th>Compatible with</th>
<td>F-Link 1.4.0 and higher</td>
</tr>
<tr><th>Power: via the control panel bus</th>
<td>12 V (9…15 V)</td>
</tr>
<tr><th>Backup (idle) mode consumption</th>
<td>25 mA</td>
</tr>
<tr><th>Current consumption (maximum) for cable selection</th>
<td>25 mA</td>
</tr>
<tr><th>Communication frequency</th>
<td>868.5 MHz</td>
</tr>
<tr><th>Dimensions</th>
<td>150 x 40 x 23 mm</td>
</tr>
<tr><th>Classification</th>
<td>security level 2, in accordance with: EN 50131-1, EN 50131-3, EN 50131-5-3</td>
</tr>
<tr><th>Environment</th>
<td>II. indoor, general in accordance with EN 50131-1</td>
</tr>
<tr><th>Operating temperature range</th>
<td>-10 °C to +40 °C</td>
</tr>
<tr><th>It also meets the requirements of</th>
<td>ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1</td>
</tr>
<tr><th>Operation conditions</th>
<td>ERC REC 70-03</td>
</tr>
</tbody>
</table>

A radio module designed for communication of the JABLOTRON 100 system with one-way wireless devices of the JABLOTRON 80 Oasis system.
