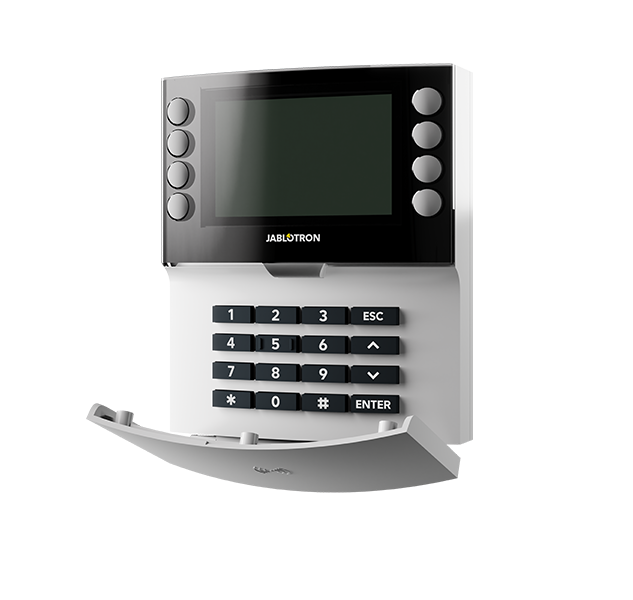

Name: Wireless four-segment keypad with display and NFC reader
SKU: JA-155E-NFC
Price: *** EUR
Availability: InStock

In stock

<p>The keypad combines a clear display with segment-based controls that use a unique traffic light logic for immediate indication of the system status.</p>
<ul>
<li>Traffic light control: Four fixed segments allow for simple control of the most common functions, such as zone monitoring or PG output control, with clear colour status indication.</li>
<li>Innovative MIFARE authorisation: Instead of the previous 125 kHz standard, the keypad supports modern and secure 13.56 MHz NFC MIFARE chips with advanced encryption.</li>
<li>Comprehensive system management: The full range of system functions can be controlled via the internal menu, including viewing event history, managing users, or blocking individual peripherals.</li>
<li>Power supply and connectivity: The module is powered by batteries with a typical lifespan of 1.6 years; alternatively, it can be powered by an external 12V power supply, with the batteries serving only as a backup.</li>
<li>External sensor input: The keypad features a digital input for connecting a wired magnetic detector, which also serves to wake up the upon entry into the premises.</li>
<li>Power-saving mode: When operating on battery power, the keypad goes into sleep mode; it is woken up by pressing a key, opening the door, an entry delay, or activation of the connected magnetic sensor.</li>
<li>System compatibility: The product is fully compatible with the <a href="https://portal.jablotron.com/p/JA-102KY" target="_blank">JA-102K</a>, <a href="https://portal.jablotron.com/p/JA-103K" target="_blank">JA-103K</a>, <a href="https://portal.jablotron.com/p/JA-107K" target="_blank">JA-107K</a> and <a href="https://portal.jablotron.com/p/JA-152KRY" target="_blank">JA-152KRY</a>  control panel series.</li>
</ul>

Wireless four-segment keypad with display and NFC reader

Colour

Product type

System

The JA-155E-NFC represents the basic user interface in the JABLOTRON 100+ and Mercury portfolios, designed for users who require maximum functionality and intuitive operation. The robust four-segment design significantly simplifies installation and, thanks to its wireless design, allows for installation without the need for any structural preparation.
