Name: Wireless universal transmitter
SKU: JA-150TX-UNI
Price: *** EUR
Availability: InStock

In stock

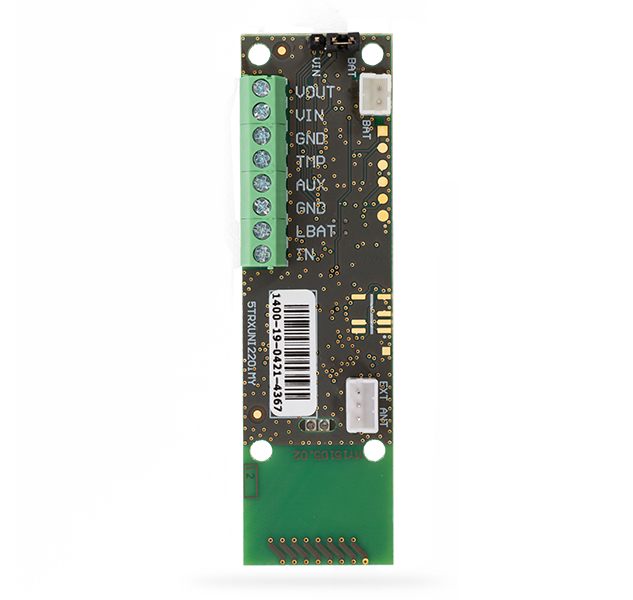

The JA-150TX-UNI is a wireless universal transmitter designed for integrating detectors from other manufacturers into JABLOTRON security systems. It allows connection via Input, Tamper, Low Bat and AUX inputs, ensuring full transmission of information about the status of the connected device.

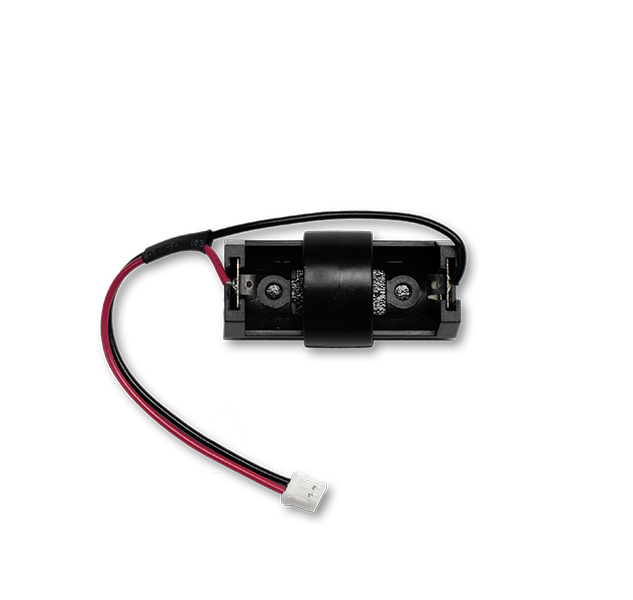

JA-150TX-UNI can be powered either directly from the detector or via a separate <a target="_blank" href="https://portal.jablotron.com/p/JA-BAT-UNI">JA-BAT-UNI</a> holder, which is connected using a ready-made connector. Thanks to the separation of the power supply from the main module, the JA-150TX-UNI is easy to install even in devices with limited internal space.

Another key advantage is the option of full remote configuration of all parameters using the F-Link app.

<h2>Key features</h2>

<ul>
<li>Compact and variable design – The separation of the power supply unit (<a target="_blank" href="https://portal.jablotron.com/p/JA-BAT-UNI">JA-BAT-UNI</a>) from the module allows for flexible installation in various types of detectors.</li>
<li>Power supply and output power line for detector – The module can be powered from the detector battery (with a minimum consumption of 24 μA) or from <a target="_blank" href="https://portal.jablotron.com/p/JA-BAT-UNI">JA-BAT-UNI</a>. In addition, it can power the detector into which it is integrated.</li>
<li>Full remote configuration from F-L – All inputs can be set remotely – including logic (NO/NC), input blocking or AUX functions (Fault / Masking). Mechanical switching is no longer necessary.</li>
<li>External antenna for increased range – The option of connecting a 3pin antenna ensures better transmission even in more demanding conditions.</li>
</ul>

Wireless universal transmitter

Product JA-150TX-UNI is intended to be installed inside 3rd party detectors (Optex, Optea, Duevi, etc.) and allows their integration with JABLOTRON system.
