Name: Control panel with LAN communicator
SKU: JA-108K
Price: *** EUR
Availability: InStock

In stock

<div style="display: flex !important; align-items: center !important; gap: 20px; background-color: #fffdf0; border: 1px solid #ffda99; border-left: 5px solid #f6b21b; padding: 20px; border-radius: 6px; margin: 20px 0; box-shadow: 0 2px 4px rgba(0,0,0,0.02);">
  <div style="flex-shrink: 0; display: flex; align-items: center; max-height: 54px;">
    <img
      src="https://www.jablotron.com/file/edee/portal-products/ja_gra_ikona_grade3_200.svg"
      alt="Grade 3 Certification"
      style="display: block !important; height: 54px !important; width: auto !important; max-width: none !important;"
    >
  </div>
  <div style="font-size: 16px; line-height: 1.6; flex-grow: 1; color: #222222;">
    <strong style="color: #000000;">Grade 3 Certification for Demanding Requirements</strong>: The product is fully compatible with installations requiring Security Grade 3. It is suitable not only for standard commercial applications (offices) and institutions (schools, public authorities), but also for <strong style="color: #f6b21b;">higher-risk premises</strong>, such as jewellers, pharmaceutical and weapons storage, archives, post offices, and more.
  </div>
</div>


<p>The control panel combines high system capacity, integrated LAN communication and support for remote management within the JABLOTRON ecosystem. At the same time, it retains the proven configuration logic of the F-Link software. The JA-108K can operate in both Grade 3 mode and Grade 2 or fully customised system profiles.</p>

<h2>Key Features</h2>
<ul>
<li>support for up to 230 peripherals and 15 sections,</li>
<li>up to 600 users and 128 programmable PG outputs,</li>
<li>integrated LAN communicator,</li>
<li>support for MyJABLOTRON 2 and MyCOMPANY applications,</li>
<li>power supply with continuous BUS output up to 2,000 mA,</li>
<li>backup operation for up to 60 hours with an 18 Ah battery,</li>
<li>configuration and servicing via USB-C,</li>
<li>support for both Grade 2 and Grade 3 security profiles.</li>
</ul>

<h2>Designed for Demanding Installations</h2>
<p>The JA-108K has been designed with a strong focus on <strong>system resilience, communication supervision and sabotage protection</strong>.</p>
<p>Compared to the JA-107K platform, it extends the system with functions required for Grade 3 operation, including stricter system readiness control, enhanced fault monitoring and additional security mechanisms intended for higher-risk premises.</p>

<h2>Flexible Platform for Security and Automation</h2>
<p>In addition to security functions, the control panel also serves as a hub for building technology management and operational automation. With support for remote access, the system can be managed from anywhere via the <strong>JABLOTRON Cloud</strong>.</p>

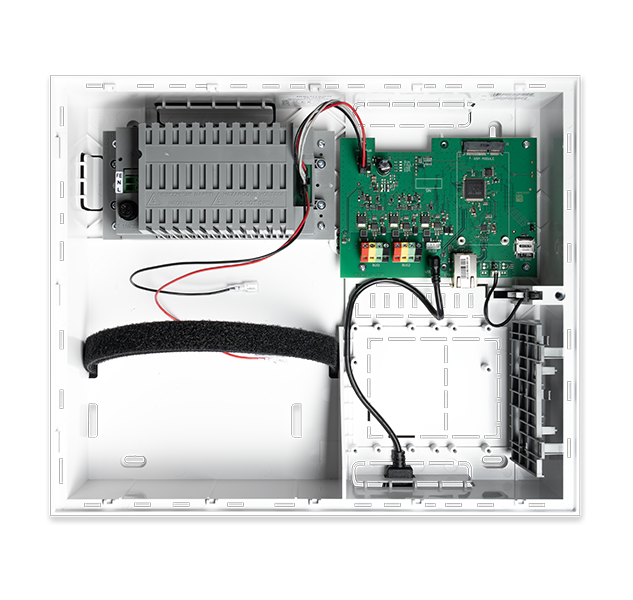

<h2>Construction and Installation</h2>

<p>The plastic enclosure provides space for expansion modules and a backup battery of up to 18 Ah. The integrated hardware platform is based on the proven JABLOTRON 100+ architecture, extended with dedicated functions for operation in higher security grades.</p>

Control panel with LAN communicator

GRADE 3

The JA-108K is the most powerful control panel in the JABLOTRON 100+ system, designed for large-scale and high-security installations. As the first JABLOTRON control panel to support Grade 3 security (according to EN 50131), it is suitable not only for offices, schools and administrative buildings, but also for higher-risk premises such as server rooms, pharmaceutical storage facilities, galleries and jewellery stores.
